Maritimo M64 Cruising Motor Yacht
The all new Maritimo M64 officially launched at the 2016 Sanctuary Cove International Boat Show. This luxurious new model was also available for viewing at Fort Lauderdale International Boat Show, October, 2016.

64 18 3 2
Length Beam Cabins Heads

The Maritimo M64 Cruising Motoryacht is effectively our ‘mini’ M70, though at sixty-four feet this is a highly impressive boat. Its shorter length simply means you no longer need to compromise on luxury and long-range performance if you have tighter berthing requirements.

In line with Maritimo’s grand design ambitions the on board living is ‘large’. You will enjoy the same feeling of apartment sized interior space found in the M70 with a full beam master suite including king bed and ensuite, fully enclosed fly bridge, walk around decks, bi-fold doors and enclosed stairway between the bridge and lounge. Providing spacious dual level luxury and numerous entertaining options for the ultimate in relaxed easy going yachting.

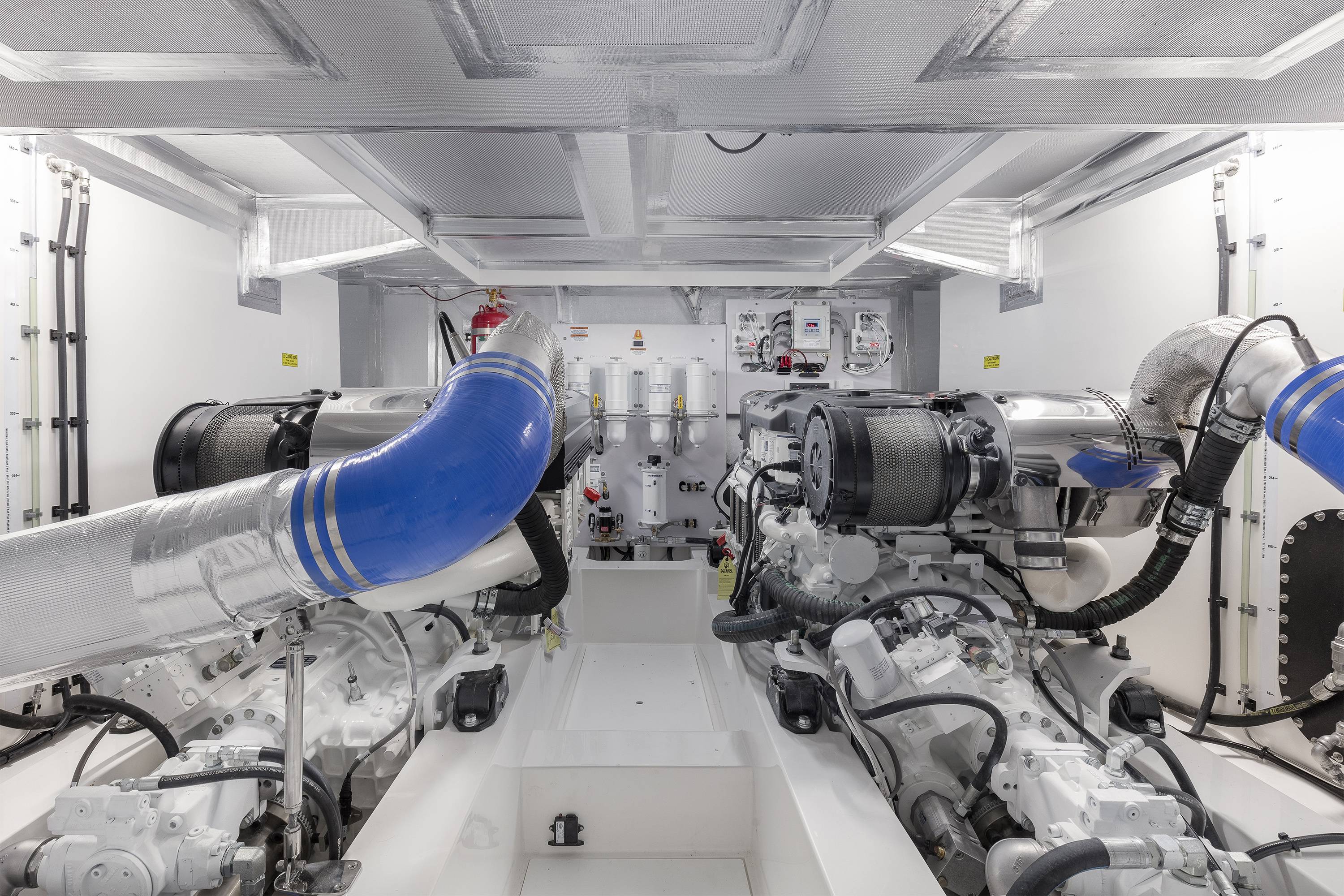

Powered by a pair of Volvo D13 900 HP engines, it places 1800HP at your disposal whilst Maritimo’s race proven shaft drive and hull design technology ensures superior fuel consumption for long range high speed blue water cruising. The perfect example of where innovative engineering and design efficiency combine to deliver the ultimate performer. You can also configure your M64 to your requirements. Choose a three cabin, three bathroom configuration – ideal for giving teenage children or guests their own space – or four cabins and two bathrooms. Outside choose from our popular Euro style transom, retain our traditional Maritimo island transom or order a sports fishing transom.

In keeping with all Maritimo motoryachts your personal taste can be accommodated into the finished layout including choice of hand crafted timber detailing, convertible berths, relocatable tables and a wet bar.
Like all Maritimo motor yachts, the M64 comes with a five-year structural warranty and you are assured of thousands of hours of efficient, reliable running.

Maritimo Features

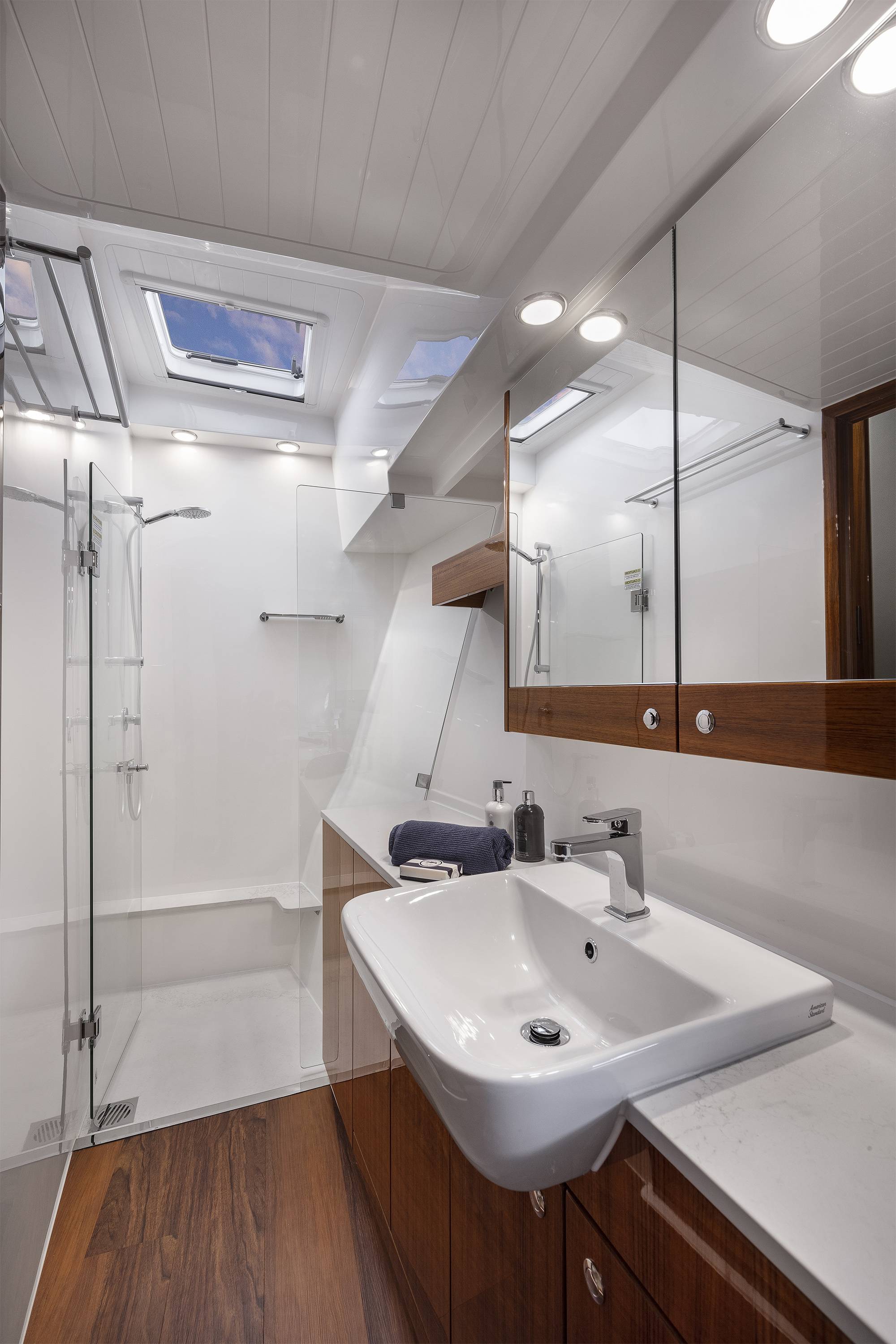

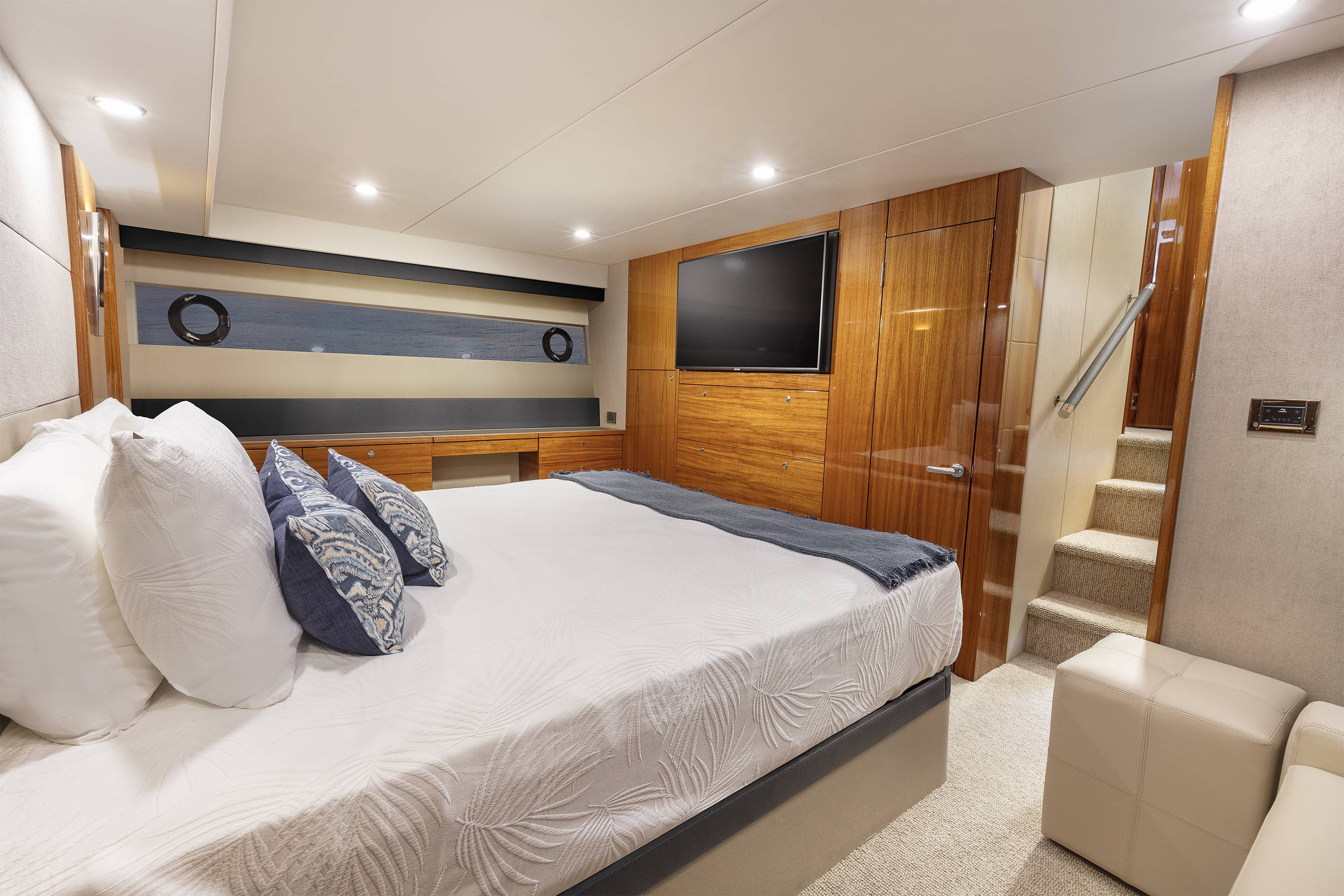

Maritimo_M48_Master_1200x800FULL BEAM MASTER
Complete with a luxurious king size bed, ensuite and chaise lounge.
Maritimo_M58_WalkaroundDecks_1200x800WALK AROUND DECKS
Allows safe and easy access to the foredeck. Perfect for children and pet exploration.
Maritimo-S_Series_Bifold_1200x800BI-FOLD DOORS
Unique bi-fold doors open up the whole living space as one.
FUEL EFFICIENCY
Maritimo’s super efficient shaft drive and hull design technology ensure the best fuel consumption in it’s class.

Specifications: Maritimo M64
Name Metric Measurement Imperial Measurement
Length Overall 19.51 M 64′ FT
Hull Length (ISO) 19.11 M 62′ 9″” FT
Beam 5.67 M 18′ 8″ FT
Draft 1.415 M 4′ 8″ FT
Fuel Capacity 5,600 L 1,479 US GAL
Water Capacity 750 L 198 US GAL
Holding Tank Capacity 300 L 79 US GAL
Dry Weight 39,000 KG 86,000 LB
Sleeping Capacity 6 STANDARD (OPTIONA) 8
Sleep Cabins 3
Generator 17.5 KW
Engines (Standard) 2 x Volvo D13 – 900 HP

Speed & Fuel Economy: Maritimo M64
[tabby title=”Scania D16″]
Maritimo M64 : Scania D16
Test Boat: Scania D16 1150 HP | Fuel: 1331 Gallons
RPM Range Knots GPH
650 3061 7.90 3.43
900 1371 9.80 9.51
1100 813 11.05 18.09
1300 498 12.10 32.35
1500 469 15.00 42.52
1700 518 20.30 52.16
1900 476 24.15 67.48
2100 419 28.00 88.87
2300 410 31.70 102.87
Download PDF
[tabby title=”Volvo D13″]
Maritimo M64 : Volvo D13
Test Boat: Volvo D13 900 HP | Fuel: 1331 Gallons
RPM Range Knots GPH
600 3358 6.30 2.50
700 2962 7.35 3.30
900 1528 8.80 7.66
1100 974 10.15 13.87
1300 659 11.05 22.32
1500 485 12.75 34.99
1700 547 17.55 42.65
1900 505 21.00 55.33
2100 447 24.00 71.44
2300 414 26.65 85.57
WOT 418 27.70 88.21
Download PDF
[tabby title=”Cat C18″]
Maritimo M64 : Cat C18
Test Boat: Cat C18 1150 HP | Fuel: 1331 Gallons
RPM Range Knots GPH
600 2737 6.25 3.04
700 1653 7.55 6.07
900 1085 9.05 11.09
1100 786 10.30 17.43
1300 484 11.10 30.50
1500 333 11.90 47.54
1700 415 18.45 59.16
1900 387 21.75 74.74
2100 341 25.25 98.38
2300 349 28.50 108.55
WOT 344 29.40 113.56
Download PDF
[tabbyending]

Photos: Maritimo M64

Layout: Maritimo M64

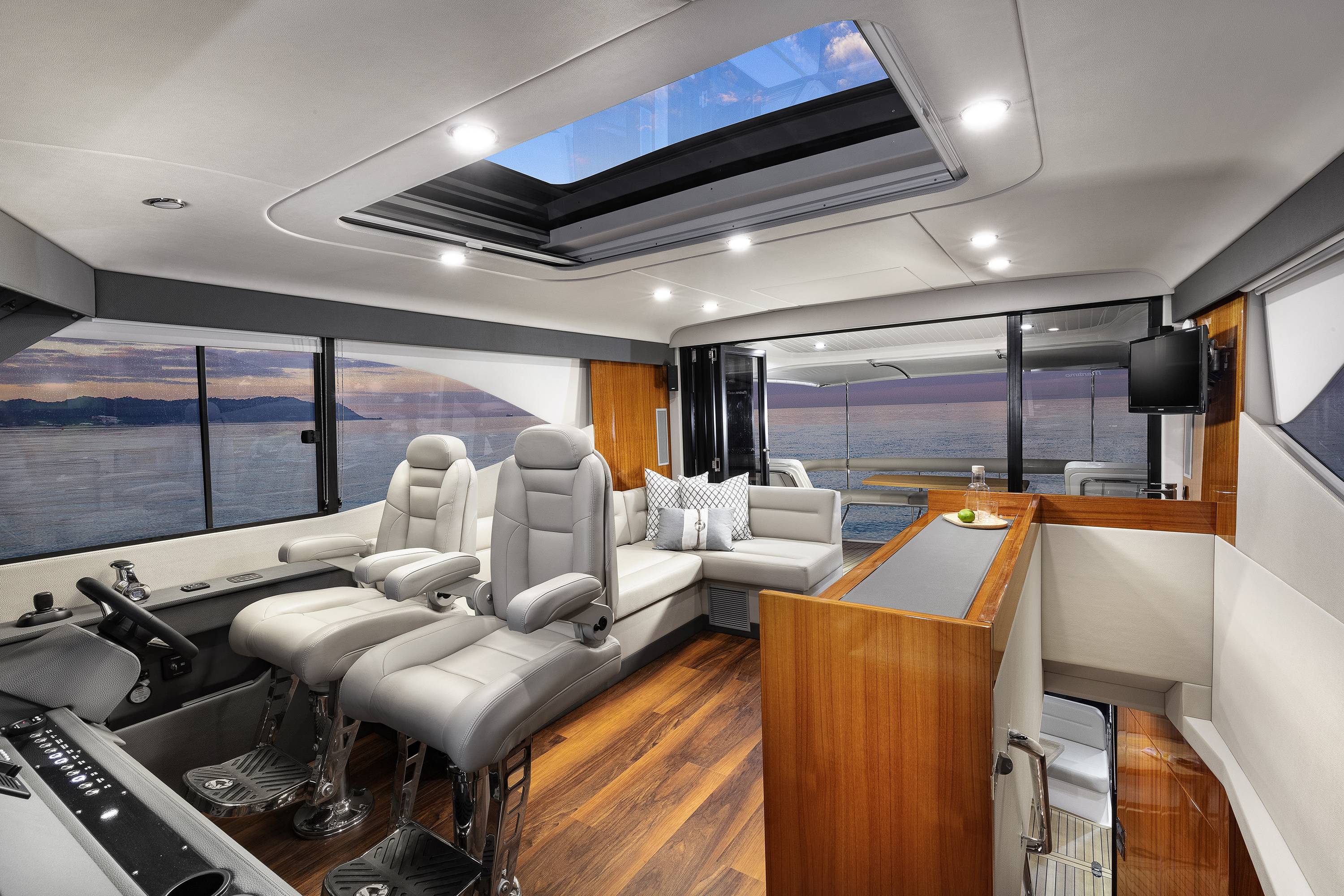

Maritimo M64 Flybridge

Maritimo M64 - Flybridge

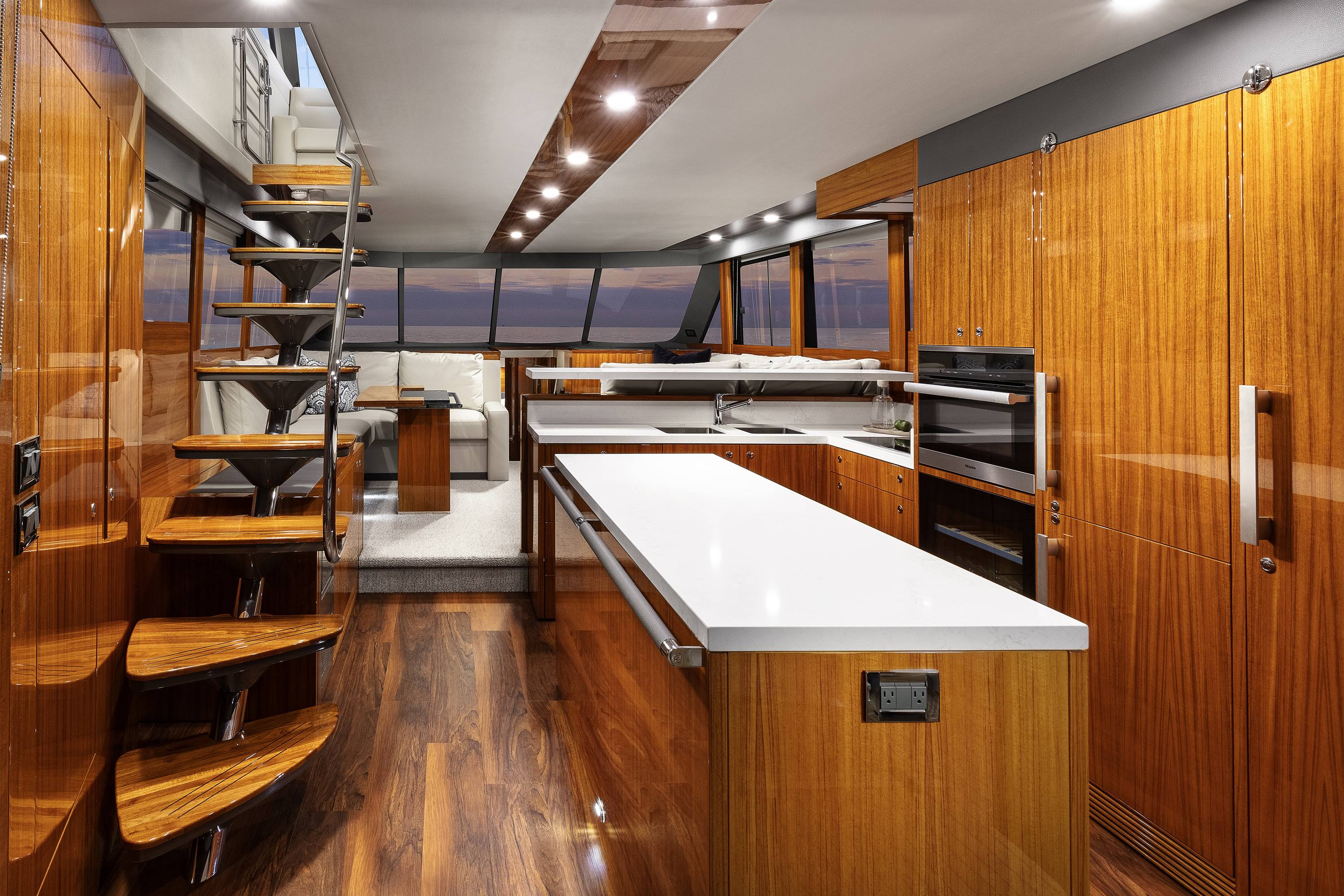

Maritimo M64 Galley

Maritimo M64 - Galley

Maritimo M64 Accommodations

Maritimo M64 - Accommodation

Exit full screenEnter Full screen
previous arrowprevious arrow
next arrownext arrow
Maritimo M64 Flybridge
Maritimo M64 Galley
Maritimo M64 Accommodations
previous arrow
next arrow

Video: Maritimo M64

Club Marine TV: Maritimo M64 Review

Virtual Tour: Maritimo M64


Download: M Series Brochure
