Maritimo M70 Cruising Motoryacht

Maritimo M70 Cruising Motor Yacht
The Maritimo M70 is a go anywhere motor yacht which can accommodate a family in style, safety and comfort for some genuine blue water passage making.
Bill Barry Cotter
Maritimo Founder

70 18 4 3
Length Beam Cabins Heads

Mariritmo M70: A Clear And Convincing Statement


Defined by the ultimate in Maritimo style, engineering, power and outstanding efficiency, everything combines to establish the uniquely commanding stature and natural leader of our fleet.

The Australian built Maritimo M70 motor yacht is a true head-turner right down to the finest detail. Step aboard and you will be immediately captivated by its space – easily accommodating your family in style, safety and comfort for some genuine blue water passage making. With four main cabins, including a full beam master and full beam ensuite plus a massive galley with domestic sized refrigerators and Miele appliances, you can be the master entertainer or just relax surrounded by family and friends. Maritimo’s signature internal staircase leading to a flybridge larger than most other’s saloons. Other options such as convertible berths, relocatable tables and a wet bar ensure an apartment like feel with every creature comfort while cruising the sea.

When serious cruising is on the agenda the M70 excels. Power varies from twin 900 horsepower engines through to a twin 1200 horsepower option. Maritimo’s super efficient shaft drive and hull design technology ensure the best fuel consumption in its class. The perfect example of where engineering and efficiency combine to deliver the ultimate performer.

Maritimo Features

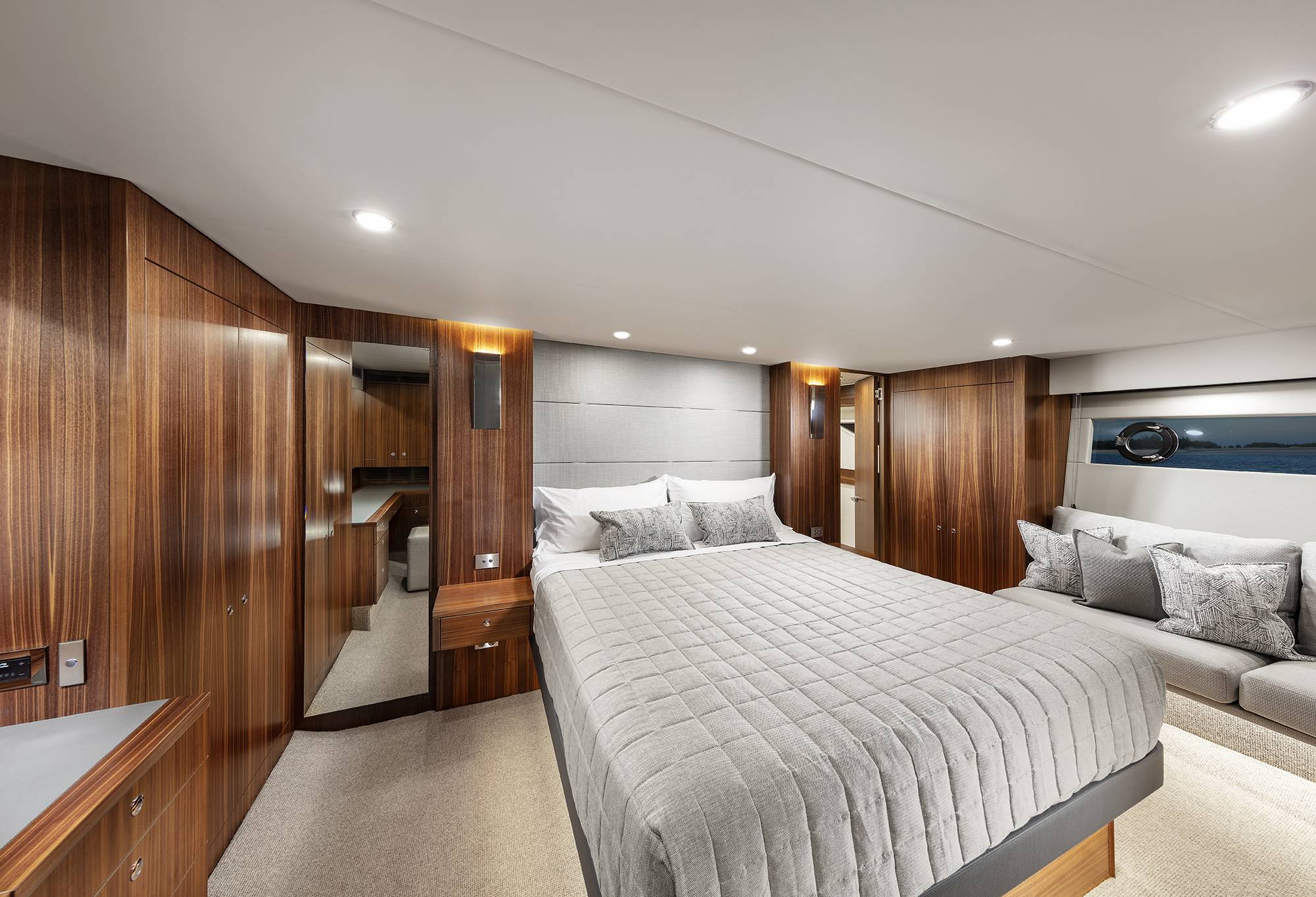

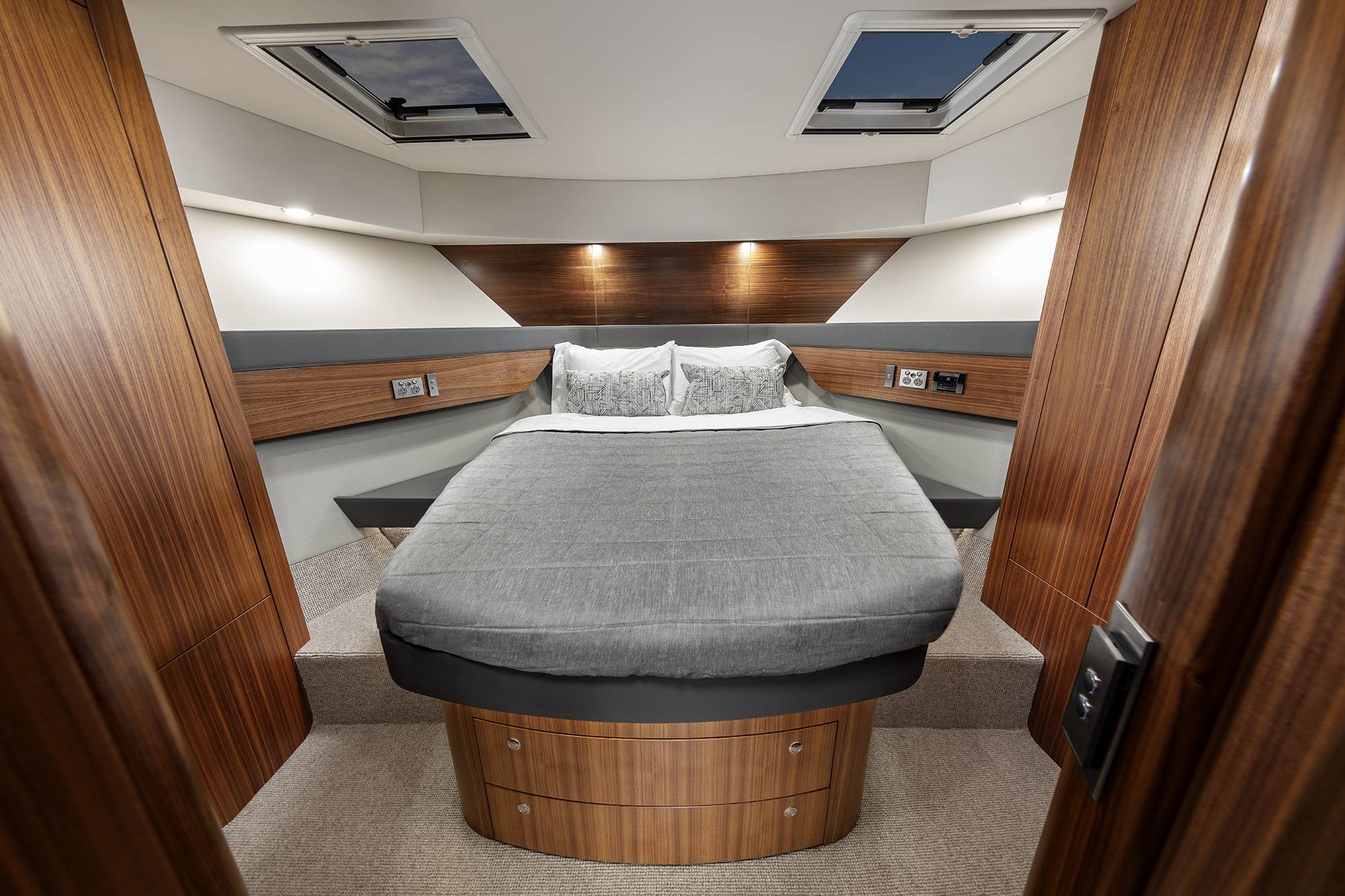

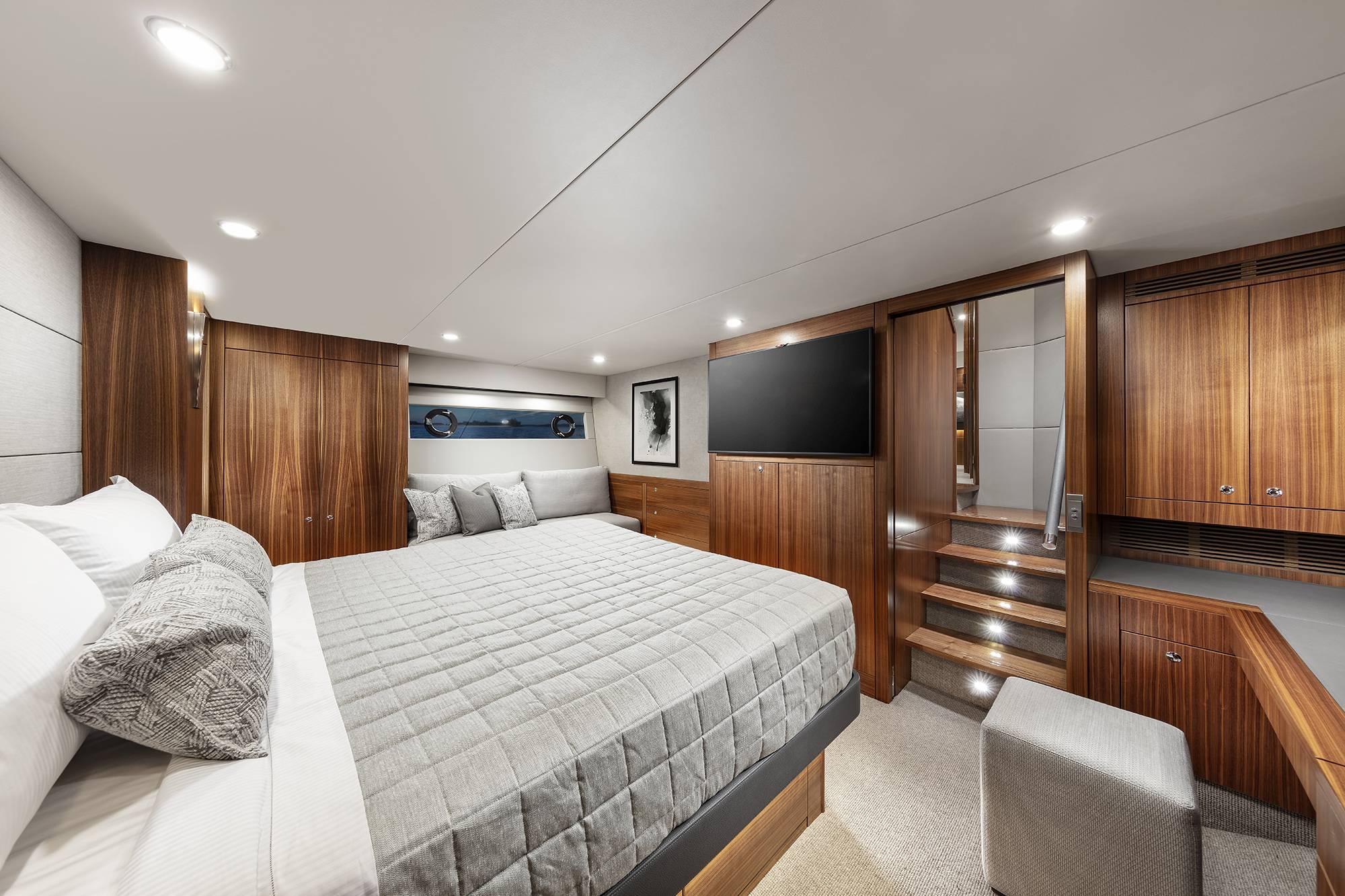

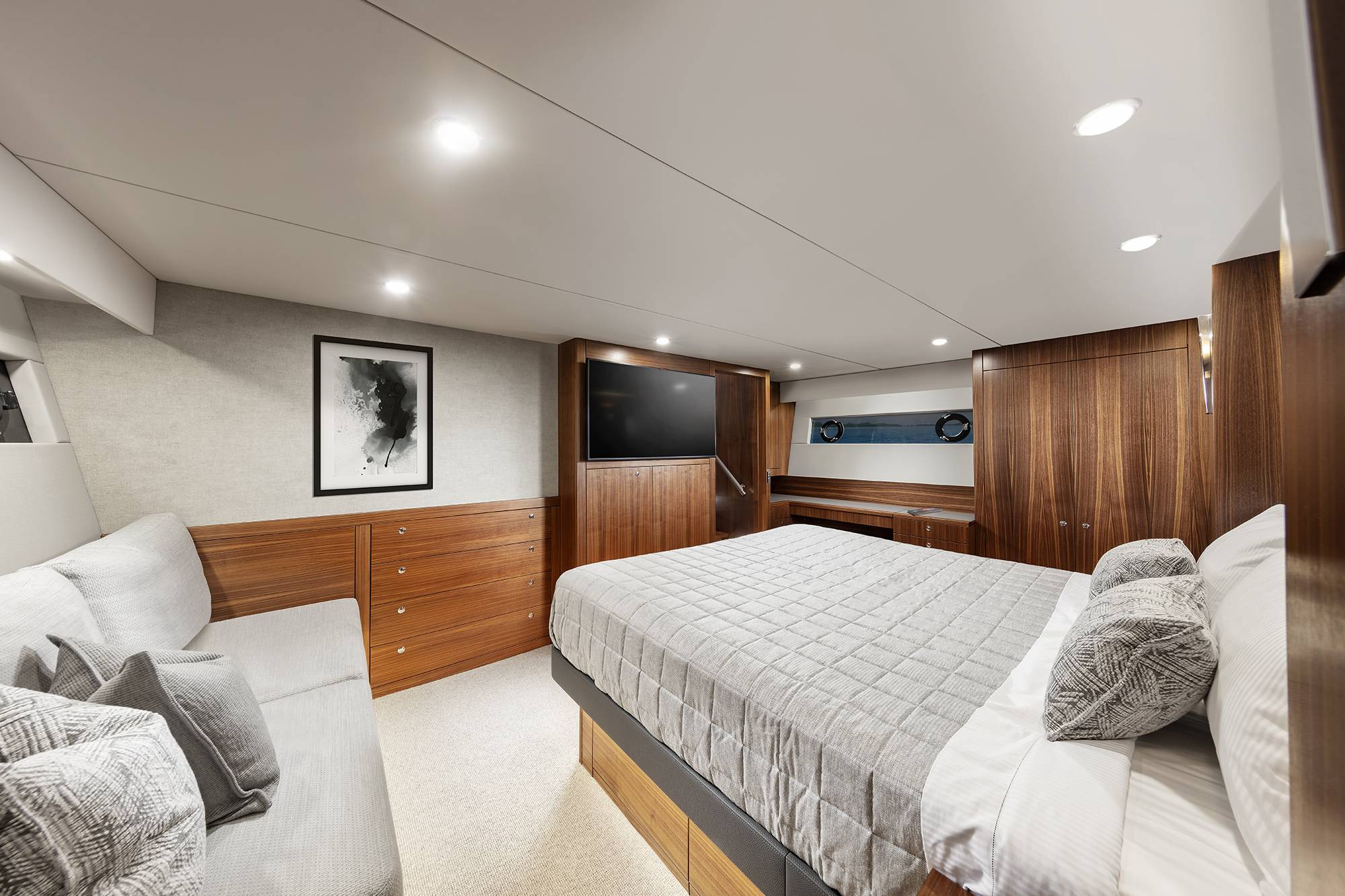

Maritimo_M48_Master_1200x800FULL BEAM MASTER

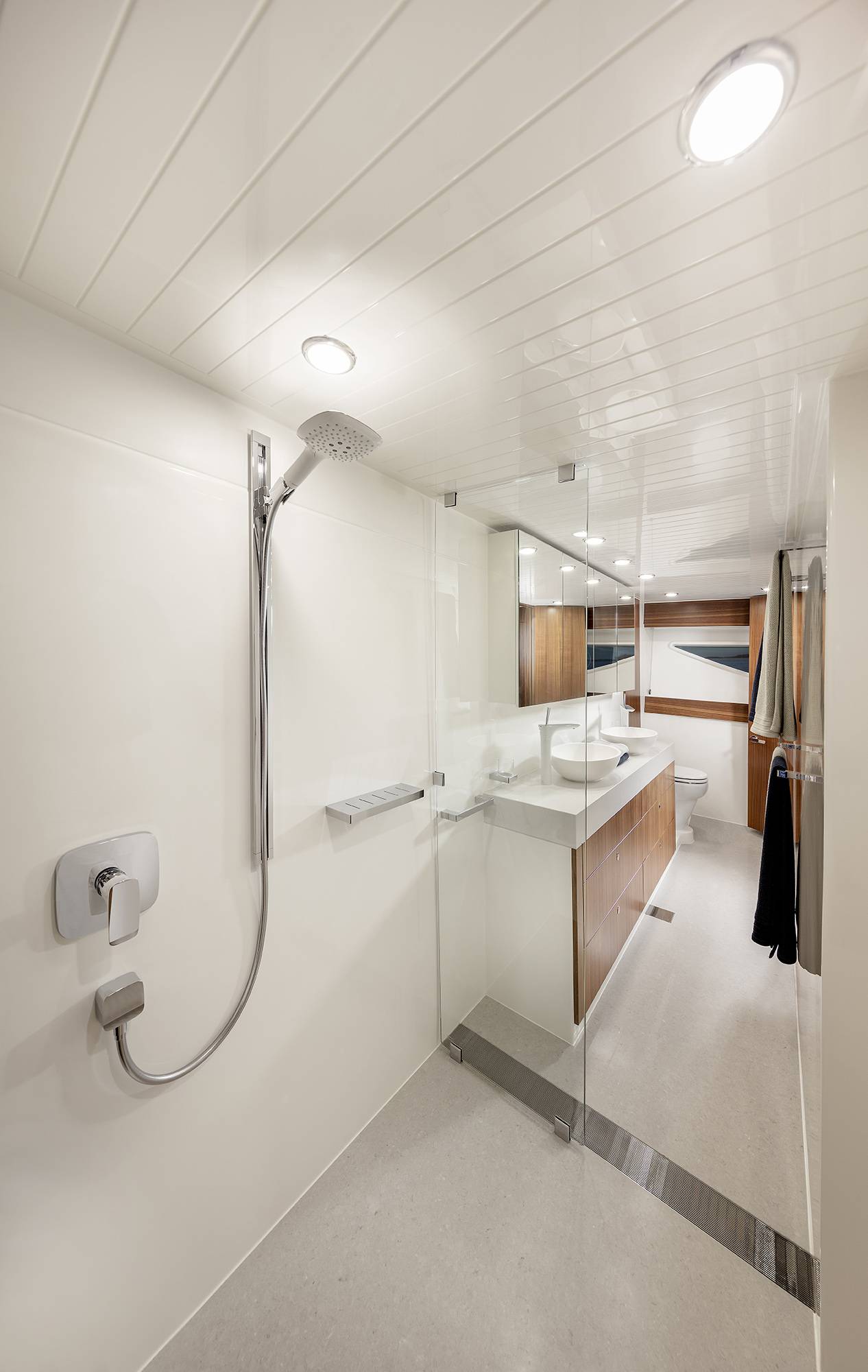

Complete with a luxurious king size bed, ensuite and chaise lounge.
Maritimo_M58_WalkaroundDecks_1200x800WALK AROUND DECKS
Allows safe and easy access to the foredeck. Perfect for children and pet exploration.

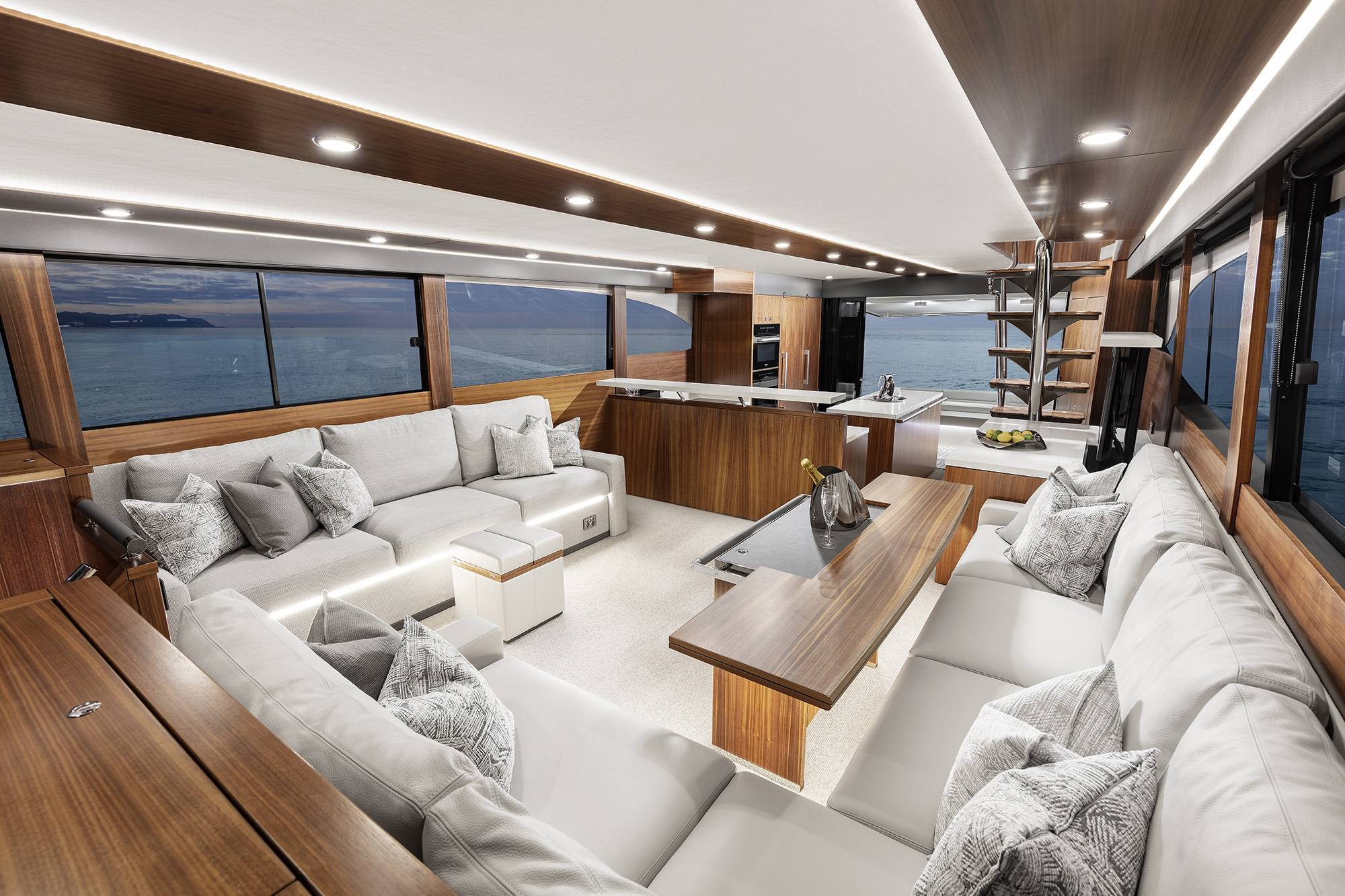

Maritimo-S_Series_Bifold_1200x800BI-FOLD DOORS
Unique bi-fold doors open up the whole living space as one.
FUEL EFFICIENCY
Maritimo’s super efficient shaft drive and hull design technology ensure the best fuel consumption in it’s class.

Specifications: Maritimo M70
Length Overall 21.51 M 70′ 7″ FT
Hull Length ISO 21.215 M 69″ 7″ FT
Beam 5.72 M 18′ 9″ FT
Draft 1.5 M 4′ 11″ FT
Dry Weight 46,000 KG 101,413 LBS
Fuel 6,200 L 1,637 US GAL
Water 1,400 L 370 US GAL
Holding Tank 400 L 105 US GAL
Sleeping Cabins 4 4
Sleeping Capacity 8 STANDARD
Standard Engines 2 x Volvo D13 – 1000HP Twin Disc 2.5:1
Generator Cummins Onan 22KW/50HZ

Speed & Fuel Economy: Maritimo M70
Maritimo M70 : Scania D16
Test Boat: Scania D16 900 HP | Fuel: 1497 Gallons
RPM Range Knots GPH
700 3117.87 7.15 3.43
800 2634.35 7.90 4.49
900 2050.44 8.50 6.21
1000 1620.94 9.15 8.45
1100 1278.79 9.70 11.36
1200 1082.70 10.60 14.6
1300 803.69 11.20 20.86
1400 652.35 11.45 29.28
1500 557.74 12.20 32.75
1600 601.43 14.80 36.84
1700 657.59 17.40 39.62
1800 602.02 18.85 46.88
1900 588.20 20.70 52.69
2000 575.90 22.35 58.10
2100 492.85 23.30 70.78
2200 489.67 25.05 76.59
2300 447.41 26.40 88.34
2312 441.64 26.80 90.85
Download PDF

Photos: Maritimo M70

Layout: Maritimo M70

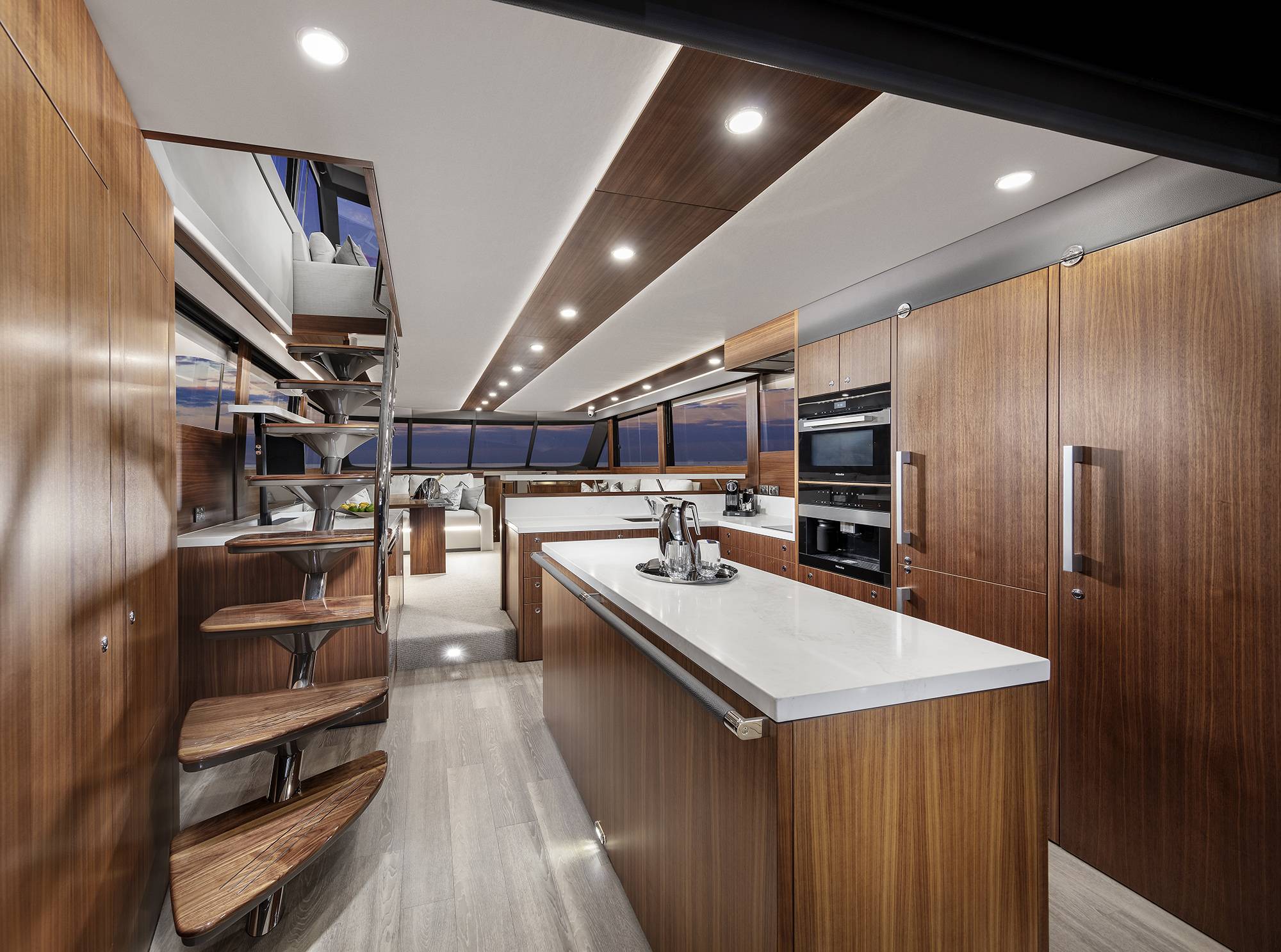

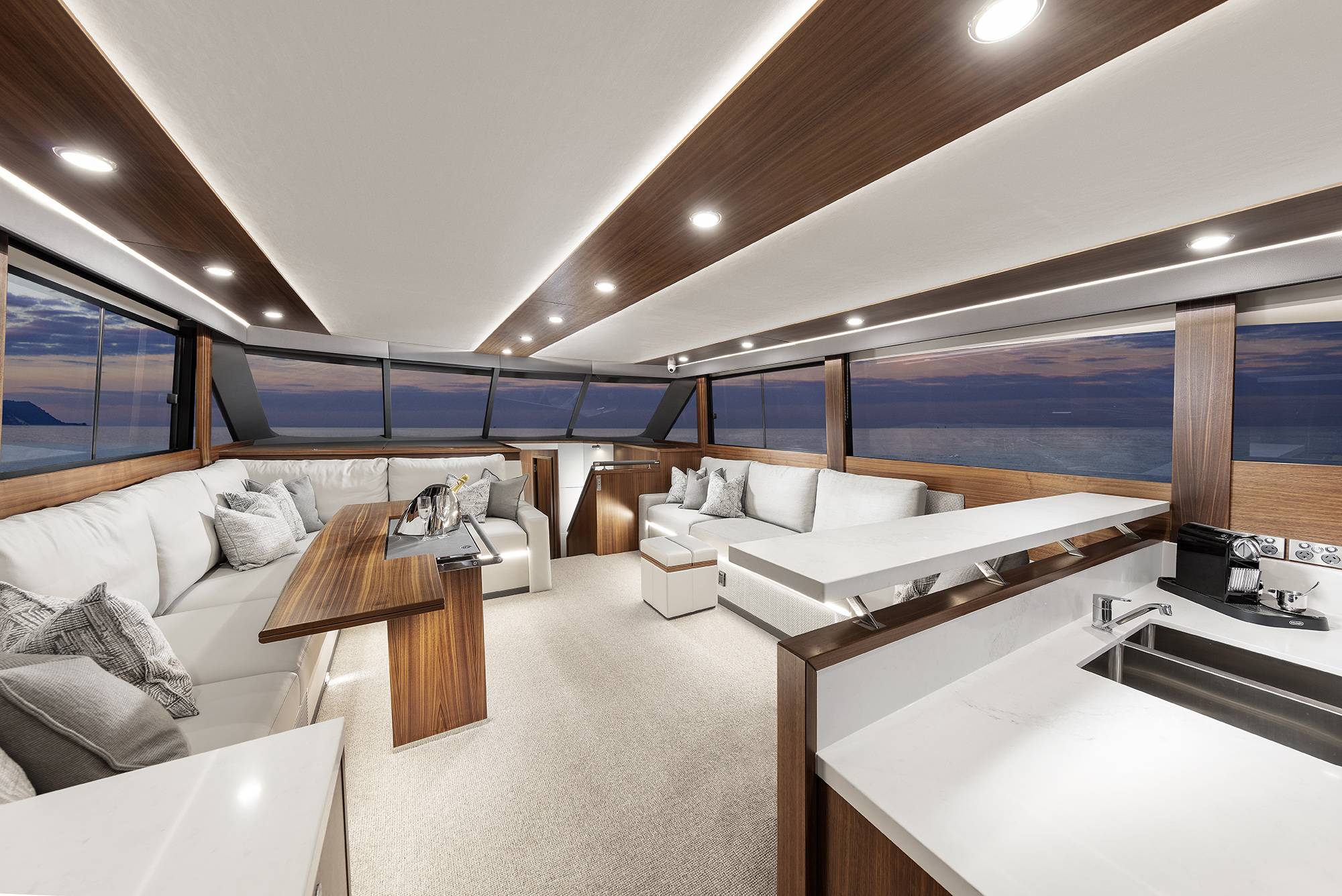

Maritimo M70 - Galley

Maritimo M70 - Galley

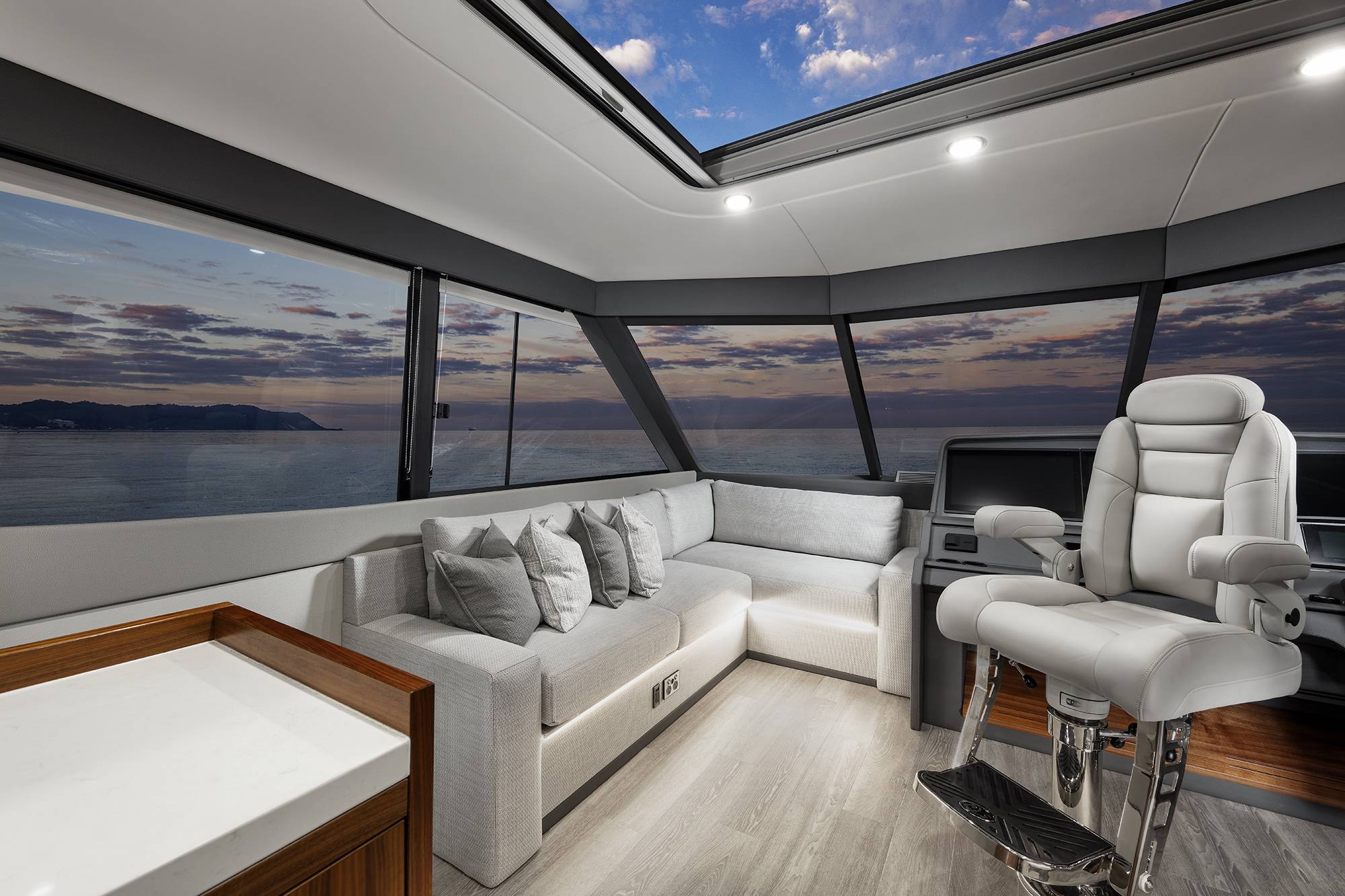

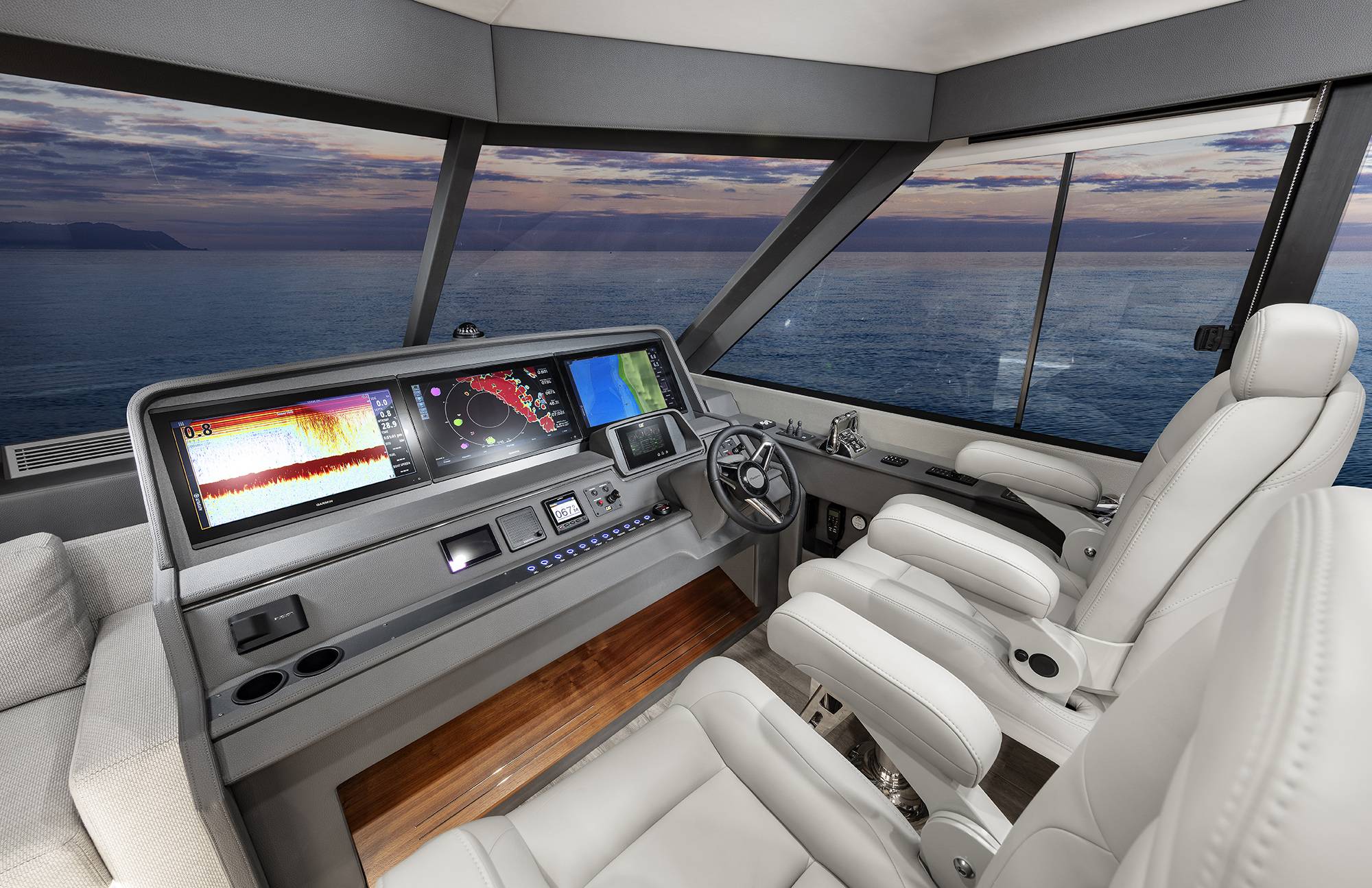

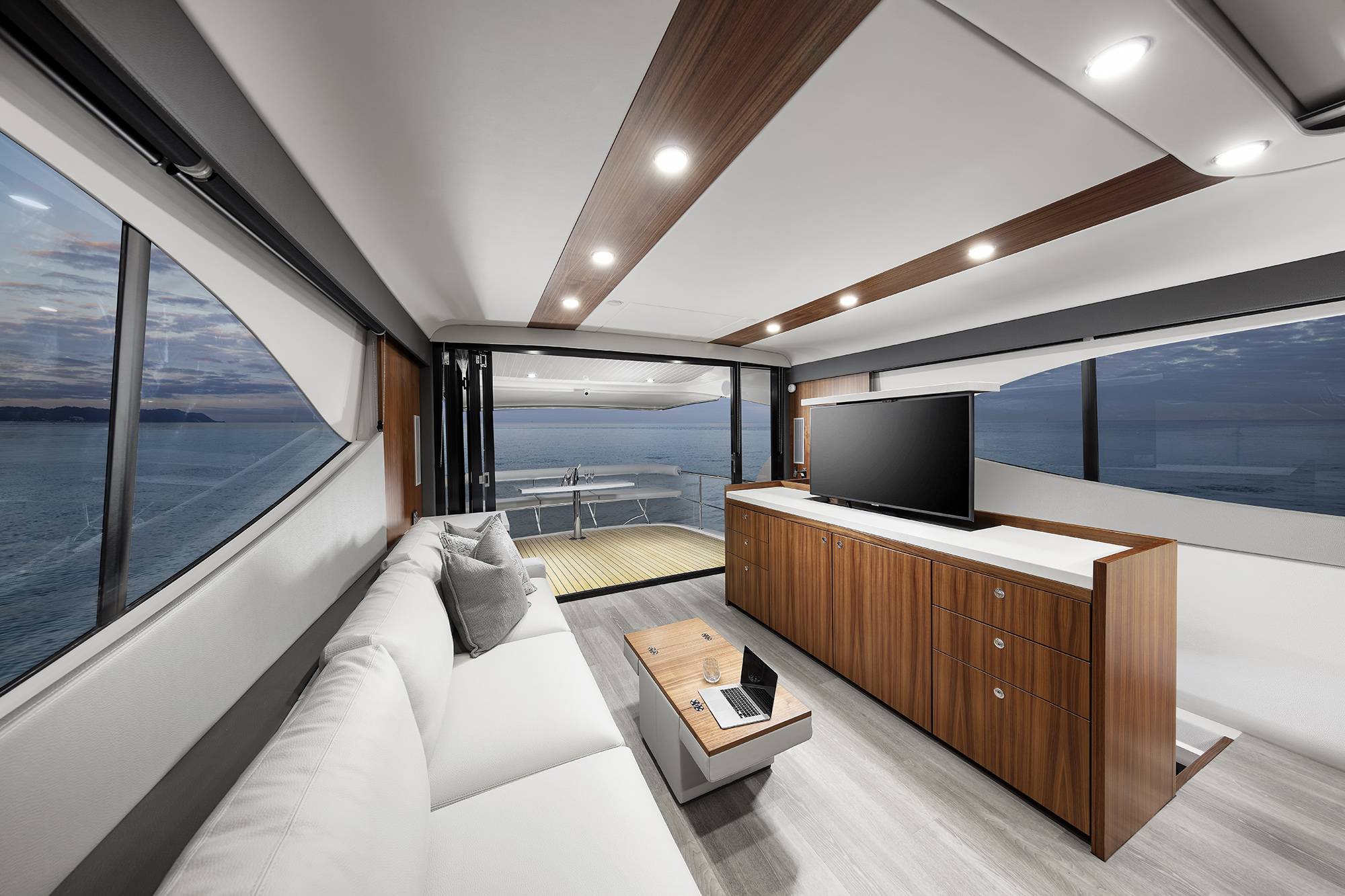

Maritimo M70 - Flybridge

Maritimo M70 - Flybridge

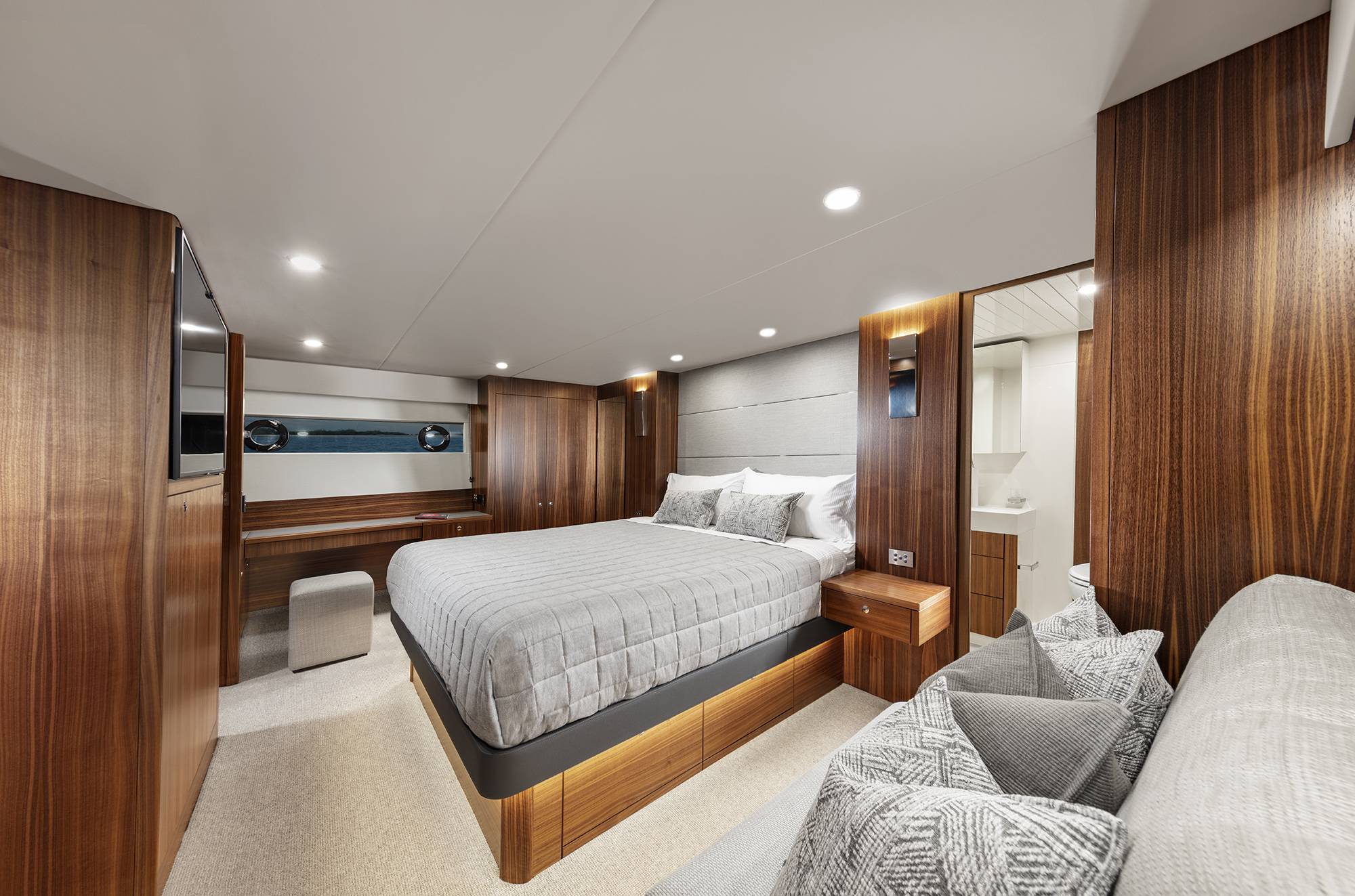

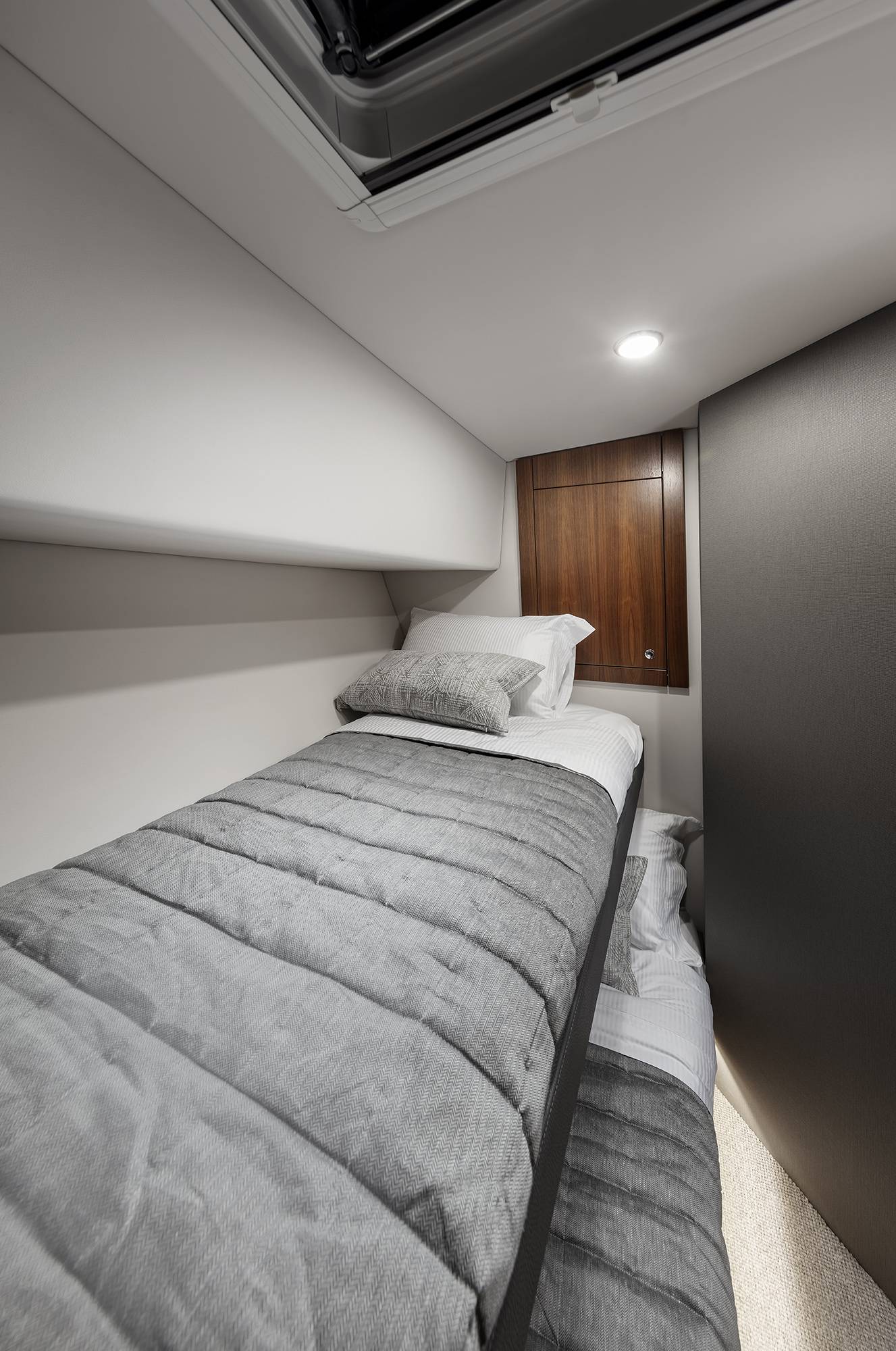

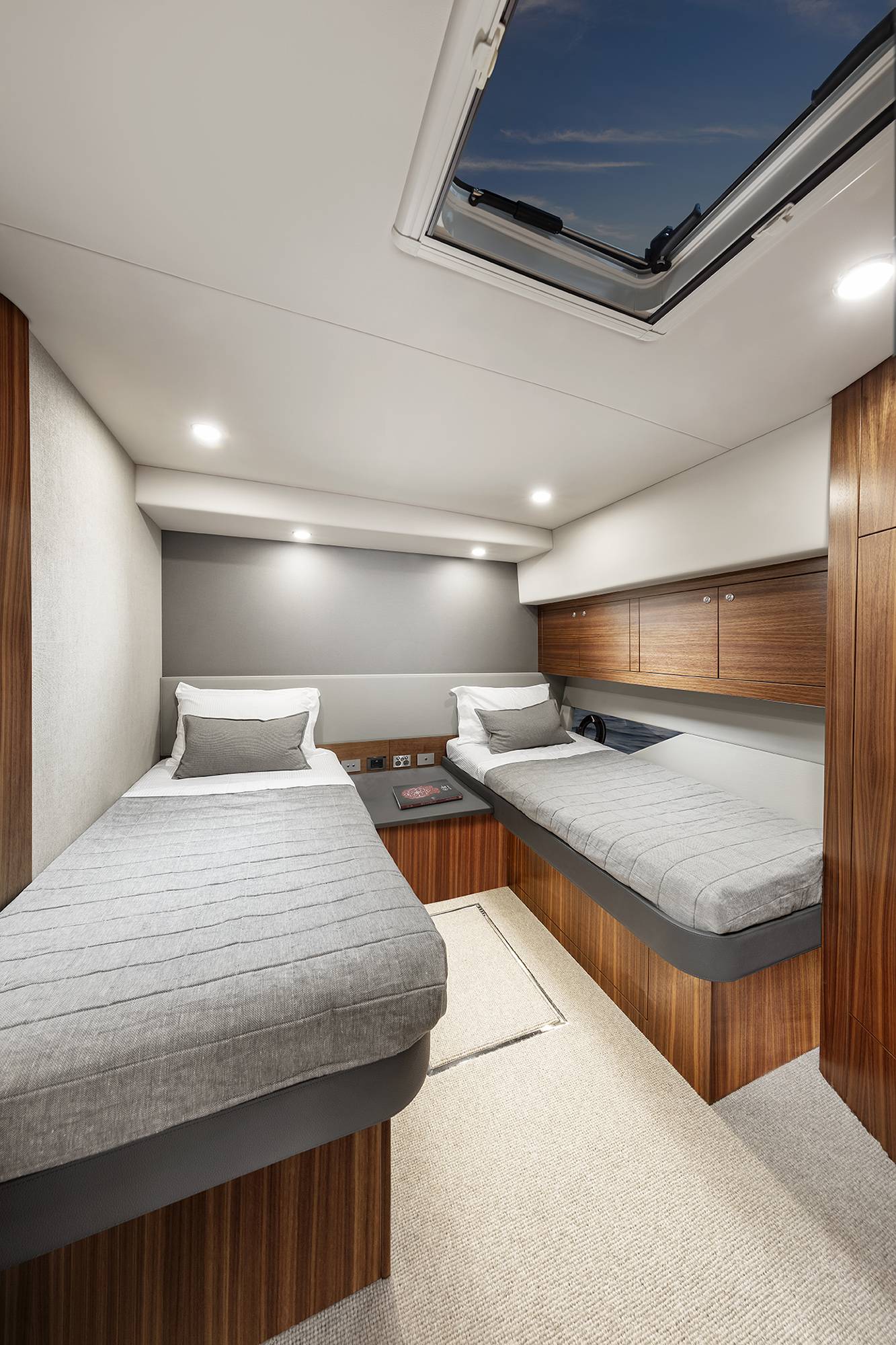

Maritimo M70 - Accommodations
